The 8 Best Plasma Cutters
Updated by · How we research
Eight plasma cutters, from budget 50-amp inverters to Miller and Hobart portables, compared on clean cut, start type and warranty. The PrimeWeld CUT60 leads. When users buy our independently chosen editorial selections, we may earn commissions to help fund the Wiki.
The thickness printed on a plasma cutter's box is often its severance figure, the most it can just push through, and a smooth cut usually runs about half that. Power matters as much as amps, since most budget cutters reach their rated thickness only on a 240-volt circuit. This list is for home welders, farm shops and fabricators choosing a first or second cutter.
Editor's Notes
October 23, 2026, by Ezvid Wiki Admin:

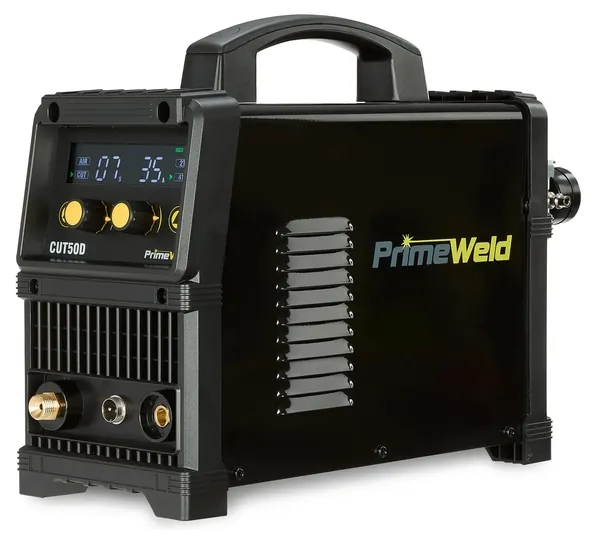

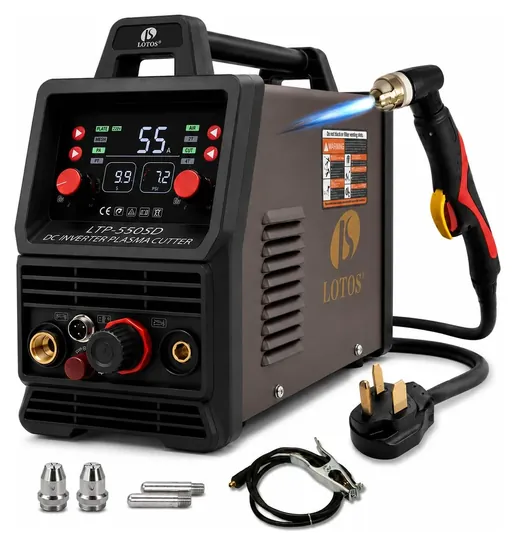

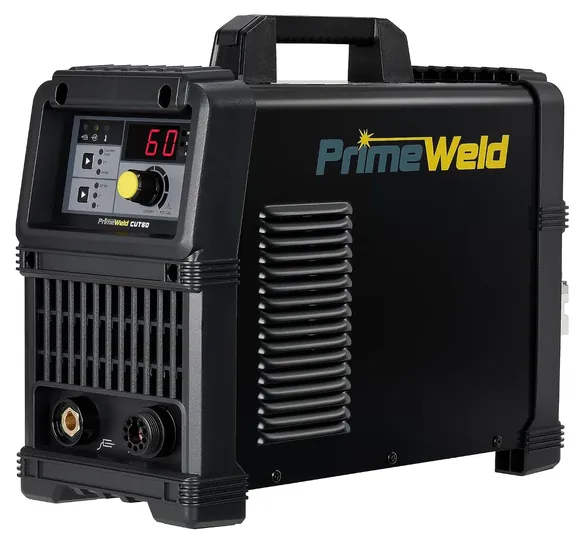

The PrimeWeld CUT60 moves to the top because it starts without touching the metal or throwing a high-frequency spark, it can drive a cutting table later, and it carries a three-year warranty, all for a fraction of what the big welding brands charge. The Miller Spectrum 625 X-Treme stays as the pro choice, and the PrimeWeld CUT50D stays as the value pick. The Lotos slot now holds the Lotos LTP5505D, which replaced the LTP5000D.

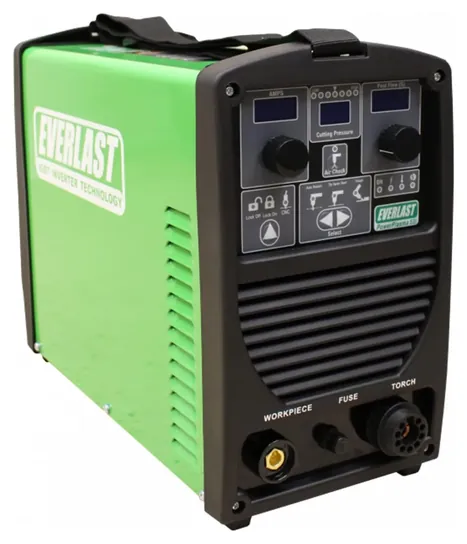

Seven of the ten old picks had to go. We could no longer find the Lincoln Electric Tomahawk 625, Hobart Airforce 40i, Eastwood Versa Cut or Lotos LT3500 for sale, and the Everlast PowerPlasma 50S gave way to the Everlast PowerPlasma 52i. Hypertherm's hand-held cutters are now sold mainly through welding distributors, so the brand moved to the special honors. We dropped the PrimeWeld CT520D because it's a welder and cutter combo.
With no lab tests of plasma cutters to draw on, we leaned on Miller, Hobart and Everlast spec sheets, Lincoln Electric's guide to clean-cut and severance ratings, two welding review sites, owner feedback and CPSC recall searches.
August 13, 2020:
Removed the AHP AlphaCut and the PrimeWeld CUT60 because of availability issues. Added the Lincoln Electric Tomahawk 625 and the Eastwood Versa Cut.
If you're hoping to run a plasma cutter or a welder on a 110 circuit, even if a plasma cutter like the Miller Spectrum 625 X-Treme advertises as running on 110 and cutting up to 3/4-inch plate, you need to keep in mind that most 110 circuits have a 20 amp breaker that won't allow you to use the cutter at the amps needed to cut 3/4 or even 1/2-inch plate. You'll probably be maxing out at 1/8th or 1/4-inch plate because once you turn the amps on the machine higher, the current draw will trip the breaker. It's also not as easy as switching out your 20-amp breaker for a 50-amp breaker. Electricians often choose the circuit wire they're going to use to match the amps expected from the circuit. So you need to make sure that you inspect the circuit wire and confirm that it can run on the higher amps without overheating or causing a fire hazard. If the gauge is too thin, you'll have to switch it out for thicker wire. So don't buy a 110 compatible plasma cutter and expect to get full functionality out of it on a 20-amp breaker.
Plasma cutters are extremely dangerous and should only be used by trained individuals that understand the hazards. Ensure adequate ventilation and use protective clothing and proper eye protection.
May 12, 2019:

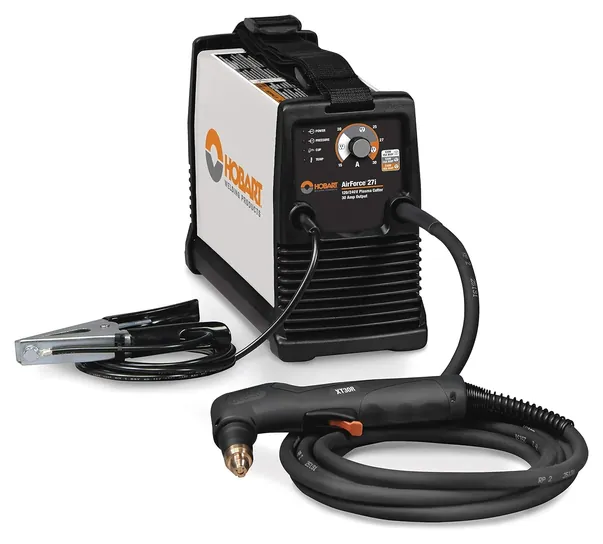

Plasma cutters can be simple, drag-operated units that don't cost much, or fancy, pilot-arcing devices suited for professional use. The hallmark of either, though, is resilient and reliable wiring inside. If you only need to cut things occasionally, the Lotos 3500 and PrimeWeld CUT50 are tough to beat, because they're remarkably inexpensive, though they don't leave the cleanest edges. The PrimeWeld CT520, another affordable option, is an all-in-one choice for those who undergo a lot of welding as well. Clear on the other end of the slicing-only spectrum are the Hobart, Miller, and Powermax 30, which are designed for contactless operation and suited for full-time use by the most skilled workers. They're awfully expensive, though.
Some of the most worth checking out, however, are in the middle of road. The Lotos 5000 is one of the most affordable pilot arc models, while the PrimeWeld CUT60 is almost impossible to beat in terms of price to performance. And at their price point, the AHP and Everlast both perform at a level nearly equal with those twice as expensive.
Special Honors
Hypertherm Powermax Hypertherm makes the Powermax line that many professionals treat as the benchmark for hand-held plasma, including the Powermax30 XP and the Powermax45 SYNC, whose single-piece cartridge replaces separate tips and electrodes. Hand-held kits sell mainly through welding distributors, and the maker's site has a dealer locator and consumable charts. hypertherm.com
Langmuir Systems Langmuir Systems sells the CrossFire line of CNC plasma tables direct, along with the software and torch mounts to run them. Its forum is a useful place to check which hand-held cutters work with a table before you buy one. langmuirsystems.com
Clean Cut, Severance And The Outlet You Have
Duty cycle is the share of a 10-minute window the cutter can run before it needs to cool.
Plasma cutters carry up to three thickness ratings, and the big one on the box is rarely the one you'll use. Lincoln Electric's buying guide separates the clean cut, a smooth edge at a steady hand speed, from severance, the thickest plate the arc can just part, slowly and with heavy slag. Plan around the clean figure, which is often about half the severance number.

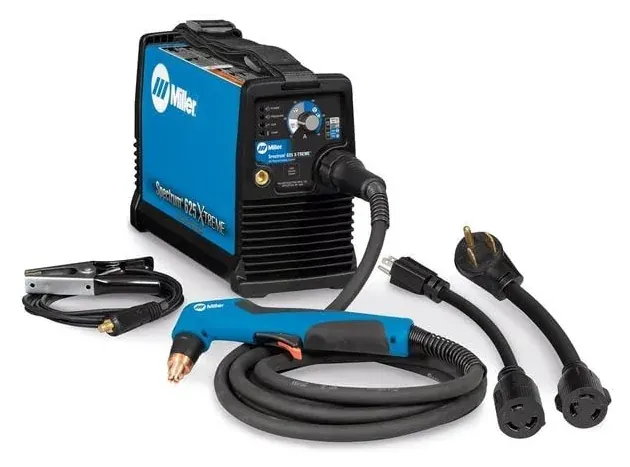

Your circuit sets the real limit. Dual-voltage cutters run on a 120-volt household outlet, but most only reach their rated thickness on 240 volts. The Miller Spectrum 625 X-Treme makes 20 amps on a 15-amp household circuit, 27 amps on a 20-amp one and 40 amps on 240 volts. Budget 50- and 60-amp units drop to about a quarter to a third of an inch of clean cut on 120 volts.
Duty cycle is the share of a 10-minute window the cutter can run before it needs to cool. A 60% rating at 50 amps means six minutes of cutting and four of rest at full power. For hobby cuts that rarely matters; for long rip cuts on a table, it does.
Start Type, Air And Consumables
How a cutter strikes its arc decides what it can cut. A pilot arc lights inside the torch and jumps to the metal without contact, so it handles rust, paint, grates and expanded metal. A contact or drag start needs bare, clean metal. Many budget cutters start with a high-frequency spark, which can interfere with computers, phones and CNC controllers nearby. Blowback starts avoid it, and that's what you want for a plasma table.
Every plasma cutter needs compressed air, typically about 4 to 6 cubic feet per minute at 65 to 90 psi, plus a filter or dryer close to the machine. Hypertherm lists wet or oily air among the main causes of poor cuts and short consumable life. Check your compressor's rating at that pressure, not its peak number.
Nozzles, electrodes and shield cups are the running cost. A MetalForming report found longer-life sets cost a bit over twice as much as standard ones but can last several times longer. Budget brands' tips wear faster, and brand-specific parts can be hard to find. One last term: "HD plasma" means high-definition plasma, an industrial CNC process, not a hand-held cutter.
Cutting Safely
The arc is bright enough to burn your eyes, so wear a filter lens. Miller's safety manual recommends shade 5 for 20 to 40 amps and shade 6 for 40 to 60 amps, and higher for more power. Wear leather gloves and cotton or wool clothing, since synthetic fabric can melt onto skin.
Sparks and molten slag fly farther than most people expect. MCR Safety advises clearing flammables from the area and keeping a fire extinguisher close. Never cut a sealed container, a fuel tank or anything that held flammable liquid.
Fumes need ventilation, especially from galvanized, painted, coated or stainless steel. Cut outdoors or with a fan pulling fumes away, and wear a respirator rated for metal fumes. Switch the cutter off before changing tips, because the torch carries high voltage.
How we researched this
We compared 18 plasma cutters and screened nine in depth. We read spec sheets from Miller, Hobart, Everlast and Hypertherm, Lincoln Electric's guide to cut ratings, reviews from WeldGuru and Welding Pros, plasma-table forum threads and patterns in owner feedback, and we checked every brand for recalls with the U.S. Consumer Product Safety Commission. No independent lab has published tests of these cutters.
Sources (12)
- Lincoln Electric: what to look for in a plasma cutter
- Miller: Spectrum 625 X-Treme
- Hobart: AirForce 27i
- Everlast: PowerPlasma series sheet
- WeldGuru: PrimeWeld CUT60 review
- WeldGuru: Lotos LTP5000D review
- Welding Pros: ARCCAPTAIN CUT50 review
- Hypertherm: troubleshooting plasma performance
- MetalForming: plasma consumable costs
- Miller: arc welding and cutting safety
- MCR Safety: plasma cutting safety
- U.S. Consumer Product Safety Commission: recalls
Frequently asked questions
How thick can a 50-amp plasma cutter cut?
Most 50-amp cutters are rated for a clean cut of about half an inch of mild steel on a 240-volt circuit. Thicker numbers on the box are usually severance ratings, which part the metal slowly with a rough edge.
Do I need an air compressor for a plasma cutter?
Yes. Most cutters need about 4 to 6 cubic feet per minute of clean, dry air at 65 to 90 psi. Add a filter or dryer near the cutter, because moisture wears out tips and electrodes fast.
Can I run a plasma cutter on a regular household outlet?
Dual-voltage cutters run on 120 volts, but at reduced power, often around a quarter to a third of an inch of clean cut. A 20-amp circuit works better than a 15-amp one. Full thickness needs 240 volts.
Which plasma cutter brands are best?

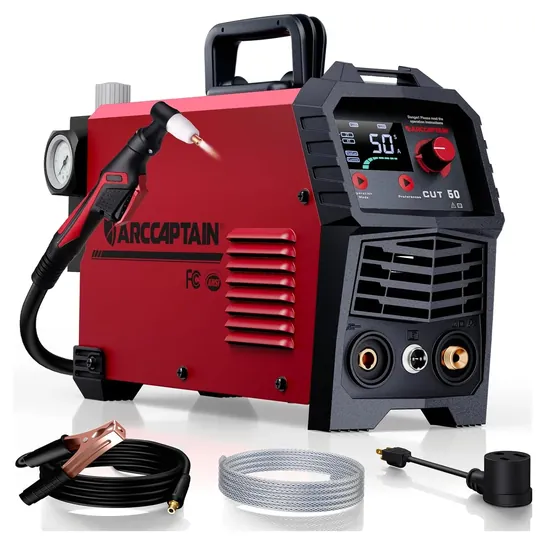

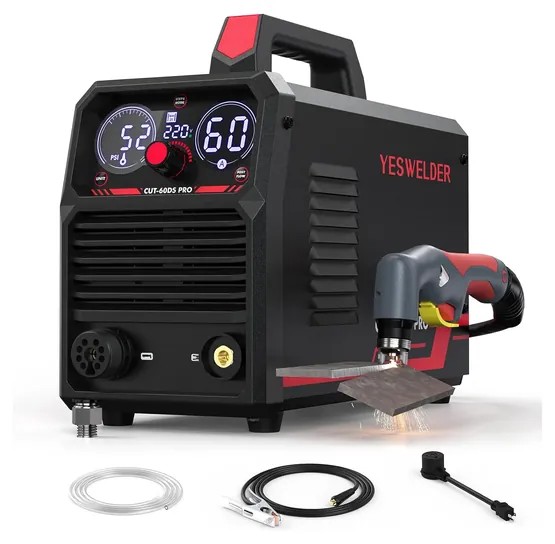

Hypertherm, Miller, Hobart and Lincoln Electric build the longest-lasting cutters and have the best parts support, at a higher price. PrimeWeld, Everlast, Lotos, YesWelder and ARCCAPTAIN sell capable cutters for home shops at a fraction of the cost.
What is an HD plasma cutter?
HD means high-definition plasma, an industrial process for CNC tables that cuts finer edges with a tightly focused arc. Hand-held cutters for home shops are conventional air plasma, not HD.
Can a plasma cutter cut aluminum and stainless steel?
Yes. Plasma cuts any metal that conducts electricity, including aluminum, stainless steel and copper. Ratings drop on those metals: Miller lists the Spectrum 625 X-Treme at 3/8 inch for aluminum versus 5/8 inch for mild steel.
